Where is the air quality sensor AirQ Sensor connected in an Airzone system?

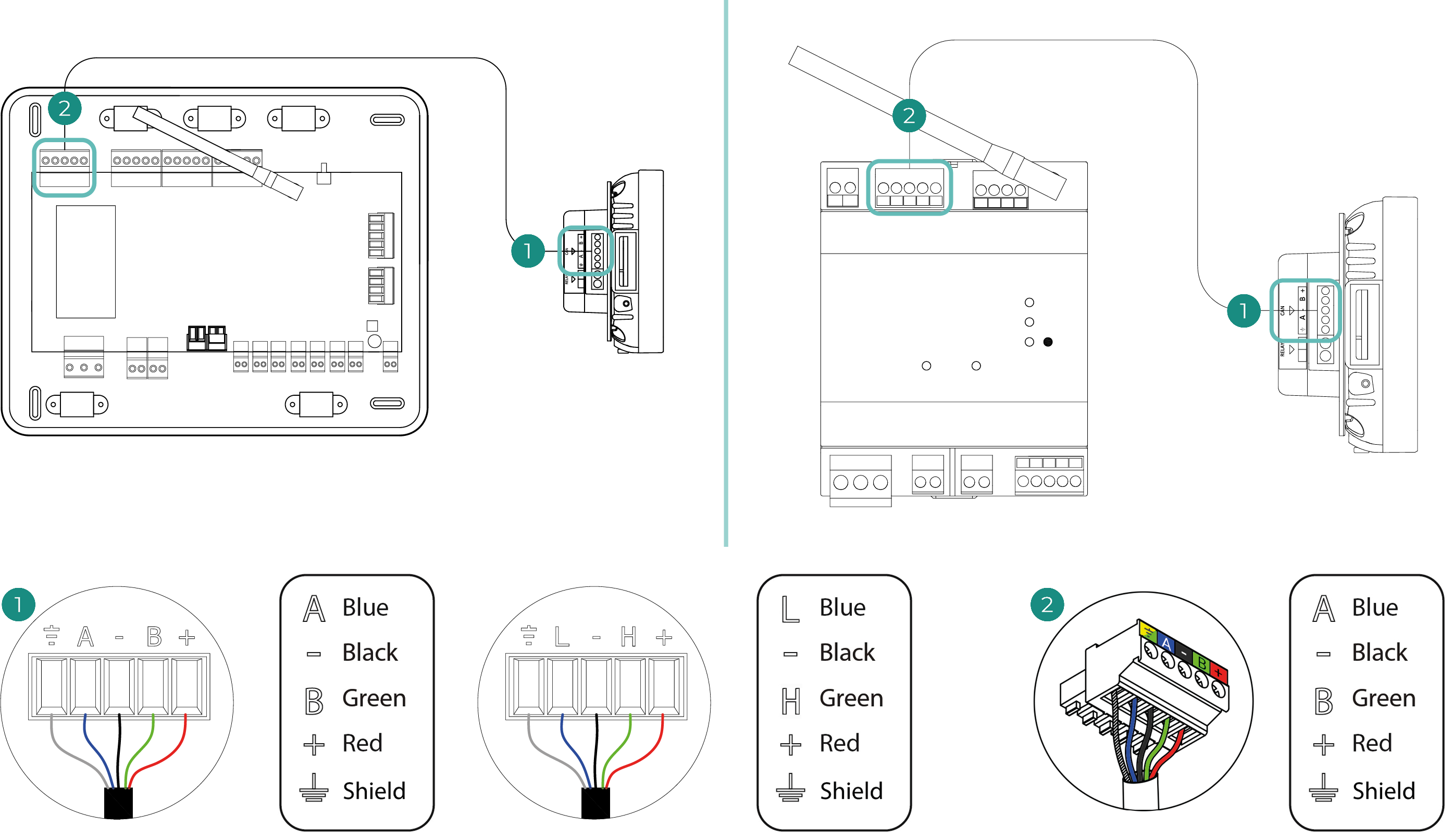

The AirQ Sensor is compatible with the following system main control boards: AZCE8CBxMOT / AZPV8CB1IAQ / AZCE8CBxDIN. It is connected to the CAN Port of the system. Follow these steps:

  1. Connect the CABLE BUS to the corresponding CAN connector of the AirQ Sensor, following the polarity and the color code of the wiring.
  2. Connect the other end of the cable to the CAN port of the system main control board.
  3. Check that the cables are properly connected and secured to ensure operation.
